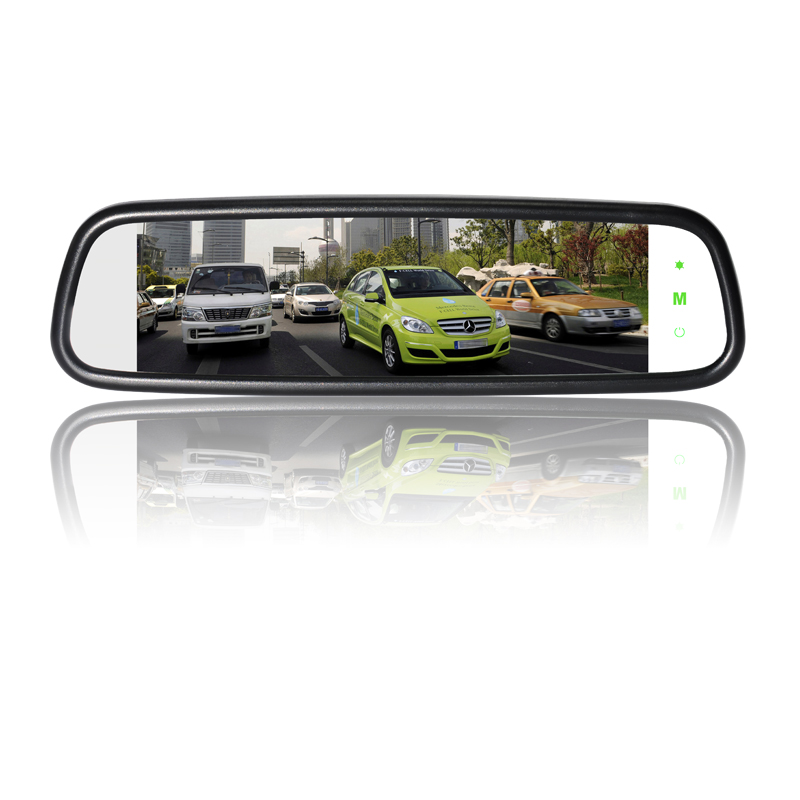

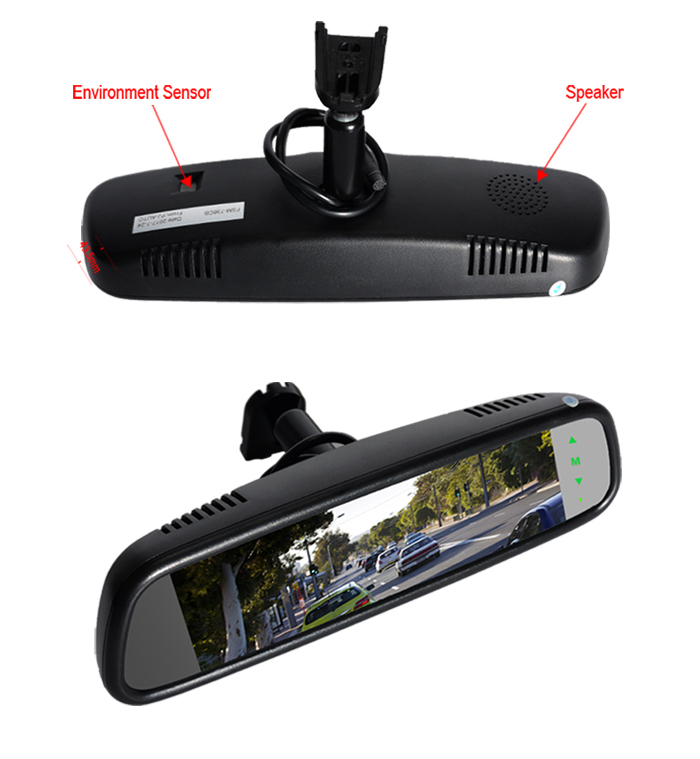

Your Location : Products > Car Monitors > Universal Mirror Monitor > 7.36” Rearview Mirror7.36” Rearview Mirror
Model: FSM-736

Features:

1, 7.36 full screen make the image on screen more clear.


2,Three-way AHD input , made it available for left, right, and rear view.

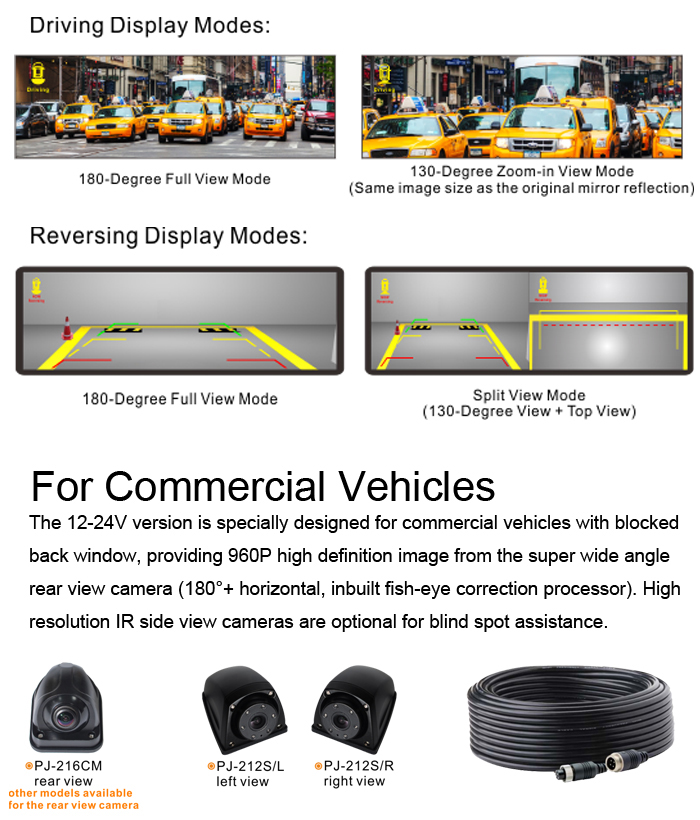

3, FSM-736kit provide multidispaly modes for drving and parking.

Driving Model: have two different angle, 180 wide angle and 130 degree zoom-in view, same image size as the original mirror reflection.

Parking model: 180 full view model, split view model(130degree view + top view)

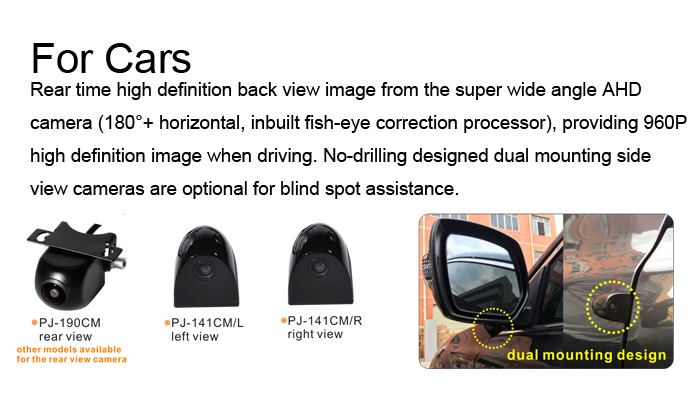

  • Specification of camera:


    sensor: AHD

    Resolution: 1280*960P

    Pixel: 1.0 mega pixel

    Minimum illumination: <0.1 LUX

    Inbuilt fish-eye correction processor

    Waterproof: IP67

    AGC: Auto

    Digital WDR: yes

    HLC: yes

    3D DNR: yes

    DEFOG:yes

    S/N Ratio: 46.4db

    Range of operational temperature:-20°C--+70°C

    Range of storage temperature:-30°C--+80°C

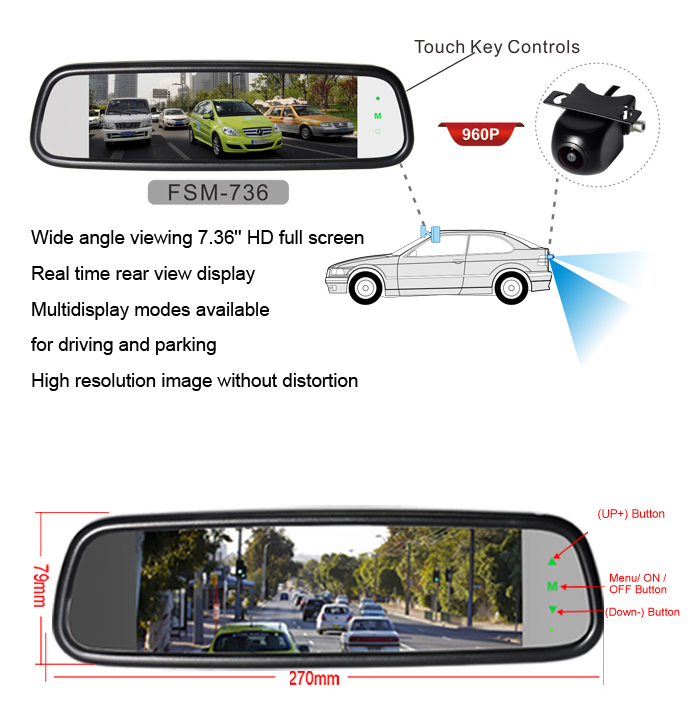

    Specification of mirror monitor:


    Screen size: 7.36inch

    Resolution: 1280*400

    Aspect ratio: 16:5

    Nominal voltage: DC12V

    Range of operational voltage:DC10.5--16V

    Maximum power consumption: ≦9W

    Video channel: 3 inputs

    Video signal: AHD

    Screen auto-brightness: yes

    Remote control:yes

    Range of operational temperature:-20°C--+70°C

    Range of storage temperature:-30°C--+80°C
